4 Leads Capacitor Encapsulated

X7R 50V-500V

Technical sheet Contact us

APPLICATIONS

•Severe environment
•Historical design

FEATURES

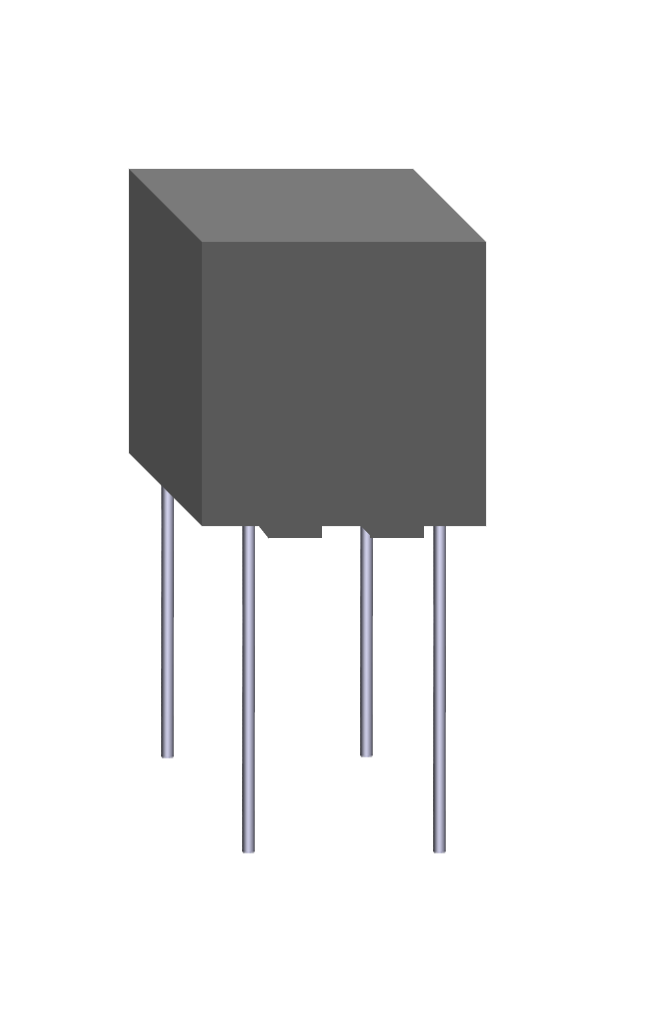

•4 Leaded radial MLCC capacitor
•Epoxy molded
•High reliability, 100% burn in
•Equivalent to concurrent design
•Straight or Crossed Electrodes
•Marking

ELECTRICAL PARAMETERS

ELECTRICAL CHARACTERISTICS :
at + 25°C unless otherwise specified
OPERATING TEMPERATURE :
X7R. N2T : - 55°C. + 125°C
NPO : - 55°C. + 125°C
TEMPERATURE COEFFICIENT :
X7R. N2T : ± 15 % (from - 55°C. to + 125°C)
NPO : 0 ± 30 ppm/°C (from - 55°C. to + 125°C)
DISSIPATION FACTOR :
X7R. N2T : Tan δ ≤ 2.5 %
NPO : Tan δ ≤ 0.1 % (0.15 % for C ≤ 30 pF)
INSULATION RESISTANCE (IR) :
At + 25°C : ≥ 10 GΩ or RC ≥ 500 s
At + 125°C : ≥ 1 GΩ or RC ≥ 50 s
DIELECTRIC STRENGTH TEST :
250 % Ur for 1 to 5 seconds at + 25°C
BURN IN :
150 % Ur / 125°C for 96 hours

Quick reference data

See datasheet for more information.

ORDERING INFORMATION

SF	70	Y	102	M	A	V	-
SERIES	SIZE	DIELECTRIC	CAPACITANCE	TOLERANCE	VOLTAGE	PACKAGING	SPECIAL
