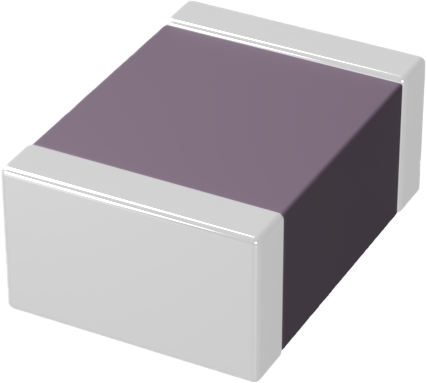

MLCC High Q RF Power


200V-8000V

Applications

  • Lasers, CATV, RF Power Amplifiers
  • Mixers, RF Instruments
Electrical Parameters

ELECTRICAL CHARACTERISTICS:
at + 25°C unless otherwise specified
OPERATING TEMPERATURE:
- 55°C, + 125°C
TEMPERATURE COEFFICIENT:
± 30ppm
DISSIPATION FACTOR:
≤ 5.10-4 at 1Vrms at 1Vrms 1MHz for values ≤ 1000pF
≤ 5.10-4 at 1Vrms at 1Vrms 1KHz for values > 1000pF
INSULATION RESISTANCE (IR):
25°C/Un 105 MOhm or 1000 Ohm-Farad whichever is less
125°C/Un 104 MOhm or 100 Ohm-Farad whichever is less
DIELECTRIC STRENGTH TEST:
2.5Un U≤200V | U+250V 200 for 5s with 50mA max charging current

Quick Reference Data




0505

1111

2525

4040

MIN

0.1pF

0.1pF

1pF

1pF

150V

620pF

1.0nF

250V

100pF







300V





3.3nF

500V



680pF

3.0nF



630V





2.4nF

1000V



200pF

1.2nF

6.8nF

1500V



47pF

470pF

2000V





5.1nF

3000V



220pF

2.2nF

3600V



51pF

390pF

5000V





180pF

7200V



















Ordering Information

2325

Q

560

F

E

X

B

-

SIZE

DIELECTRIC

CAPACITANCE

TOLERANCE

VOLTAGE

TERMINATION

PACKAGING

SPECIAL

0505

1111

2325

4040

Q = High Q

Expressed in picofarads (pF).The first two digits are significant, the third digit give the number of noughts.

Example :

102 = 1000pF

A = ±0.05pF if < 10pF and

0.05% if > 10pF

B = ± 0.1pF

C = ± 0,25pF
D = ± 0,5pF
F = ± 1%
G = ± 2%
J = ± 5%

A = 50V
B = 100V
C = 200V
P = 250V
D = 300V
E = 500V
F = 630V
G = 1000V
O = 1500V
H = 2000V
T = 2500V
I = 3000V
M = 3600V
K = 4000V
L = 5000V
S = 7200V
8 = 8000V

X = Nickel Tin
C = Copper Tin (Non magnetic)
F = Silver Palladium (Non magnetic)
W = Nickel Gold Flash
G = Nickel Gold Thick
H = Dipped SnPb
I = Electrolytic SnPb
M = Microstrip
A = Axial Ribbon
R = Radial Ribbon
U = Axial Wire
V  = Radial Wire
CM  = Microstrip  (Non magnetic)
CA = Axial Ribbon (Non magnetic)
CR = Axial Ribbon (Non magnetic)
CU = Axial Wire (Non magnetic)
CV = Radial Wire (Non magnetic)



B = Reel

V = Bulk

-

Txx = Thickness spec

Dxx = Reliabilty spec

Exx = Sorting spec
