Short Lead Times    Custom Designs    Made In France   No Obsolescence

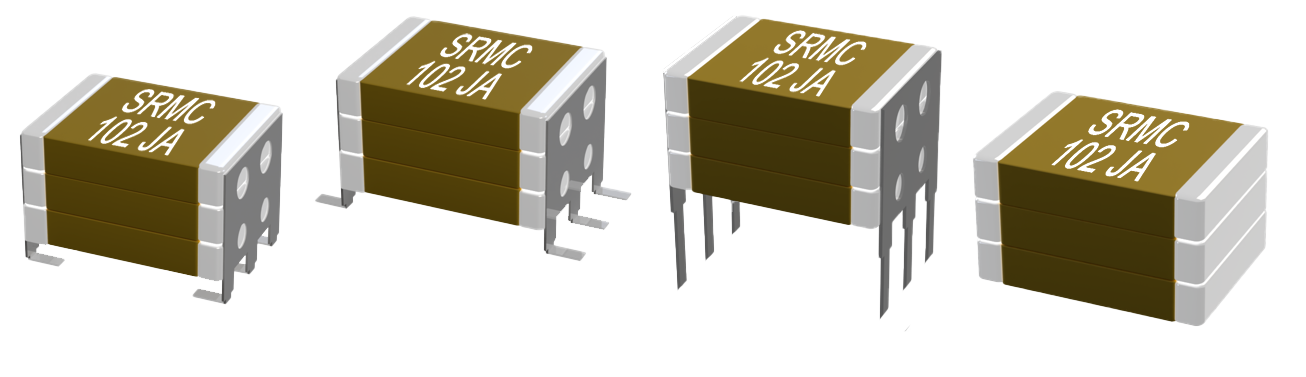

Stacks Haute Puissance


NPO N2T X7R 16-1000V

Applications

Switch Mode Power Capacitor

for Input / Output Filtering



Features

High reliability

Low ESR and ESL design

High frequency switch

Custom designs with any size, voltage, capcity, leads...

Electrical Parameters

ELECTRICAL CHARACTERISTICS :

at + 25°C unless otherwise specified
OPERATING TEMPERATURE :

- 55°C, + 125°C
DISSIPATION FACTOR:

NP0 : ≤ 1.10-3 at 1Vrms and 1MHz for values ≤ 1000pF
≤ 1.10-3 at 1Vrms and 1KHz for values > 1000pF
N2T : ≤ 1.10-3 at 1Vrms and 1MHz for values ≤ 1000pF
≤ 1.10-3 at 1Vrms and 1KHz for values > 1000pF
X7R : ≤ 0.025 at 1kHz for C ≥ 100pF
BX :  ≤ 0.025 at 1kHz and 1MHz for values ≤ 1000pF
2C1 : ≤ 0.025 at 1kHz and 1MHz for values ≤ 1000pF
INSULATION RESISTANCE (IR) :

25°C/Un 10MOhm or 1000 Ohm-Farad whichever is less
125°C/Un 10
4 MOhm or 100 Ohm-Farad whichever is less
DIELECTRIC STRENGTH TEST :

2.5Un for 5s with 50mA max charging current
BURN IN :
48 hours 125°C 2Un if Un<500V and 1.5 Un if Un >500V

Quick Reference Data

See datasheet for more information.
Ordering Information

SRMC

2225

Y

102

J

A

-

L

-

B

-

SERIE

SIZE

DIELECTRIC

CAPACITANCE

TOLERANCE

VOLTAGE

TERMINAISON

FORM

COATING

PACKAGING

SPECIAL

SRMC

1210
1812
1825
2220
2225
2825
3033
3640
4040

40150
5550

6080
6660
8060

80150

A = NP0
P = N2T
X = BX
Y=X7R
BY=2C1

Expressed in picofarads (pF)
The first two digits are significant, the third digit give the number of noughts
Example : 102 = 1 000pF

A = ±0.05pF if < 10pF and

0.05% if > 10pF

B = ± 0.1pF

C = ± 0,25pF
D = ± 0,5pF
F = ± 1%
G = ± 2%
J = ± 5%
K = ± 10%
M = ± 20%

 J  =  16 V
 X  =  25 V
A  =  50 V
U  =  63 V
B  =  100 V
C  =  200 V
P = 250 V
E  =  500 V
F = 630 V
G = 1 KV



-
P : Polymer




J
L
D
M
U = 4 leads




-
I = Varnished

CoatIng

H = EpoxyCoating

B = Reel
V = Bulk




-

BM = BME
Txx = Thickness spec

Dxx = Reliabilty spec

Exx = Sorting spec
