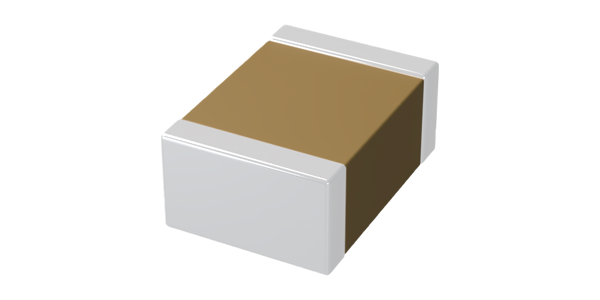

# MLCC High Q RF Power

## 200V-8000V

Applications

• Lasers, CATV, RF Power Amplifiers
• Mixers, RF Instruments
Electrical Parameters

ELECTRICAL CHARACTERISTICS:
at + 25°C unless otherwise specified
OPERATING TEMPERATURE:
- 55°C, + 125°C
TEMPERATURE COEFFICIENT:
± 30ppm
DISSIPATION FACTOR:
≤ 5.10-4 at 1Vrms at 1Vrms 1MHz for values ≤ 1000pF
≤ 5.10-4 at 1Vrms at 1Vrms 1KHz for values > 1000pF
INSULATION RESISTANCE (IR):
25°C/Un 105 MOhm or 1000 Ohm-Farad whichever is less
125°C/Un 104 MOhm or 100 Ohm-Farad whichever is less
DIELECTRIC STRENGTH TEST:
2.5Un U≤200V | U+250V 200 for 5s with 50mA max charging current

Quick Reference Data

 0505 1111 2525 4040 MIN 0.1pF 0.1pF 1pF 1pF 150V 620pF 1.0nF 250V 100pF 300V 3.3nF 500V 680pF 3.0nF 630V 2.4nF 1000V 200pF 1.2nF 6.8nF 1500V 47pF 470pF 2000V 5.1nF 3000V 220pF 2.2nF 3600V 51pF 390pF 5000V 180pF 7200V
Ordering Information

 2325 Q 560 F E X B - SIZE DIELECTRIC CAPACITANCE TOLERANCE VOLTAGE TERMINATION PACKAGING SPECIAL 0505 1111 2325 4040 Q = High Q Expressed in picofarads (pF).The first two digits are significant, the third digit give the number of noughts. Example : 102 = 1000pF A = ±0.05pF if < 10pF and 0.05% if > 10pF B = ± 0.1pF C = ± 0,25pF D = ± 0,5pF F = ± 1% G = ± 2% J = ± 5% A = 50V B = 100V C = 200V P = 250V D = 300V E = 500V F = 630V G = 1000V O = 1500V H = 2000V T = 2500V I = 3000V M = 3600V K = 4000V L = 5000V S = 7200V 8 = 8000V X = Nickel Tin C = Copper Tin (Non magnetic) F = Silver Palladium (Non magnetic) W = Nickel Gold Flash G = Nickel Gold Thick H = Dipped SnPb I = Electrolytic SnPb M = Microstrip A = Axial Ribbon R = Radial Ribbon U = Axial Wire V  = Radial Wire CM  = Microstrip  (Non magnetic) CA = Axial Ribbon (Non magnetic) CR = Axial Ribbon (Non magnetic) CU = Axial Wire (Non magnetic) CV = Radial Wire (Non magnetic) B = Reel V = Bulk - Txx = Thickness spec Dxx = Reliabilty spec Exx = Sorting spec
